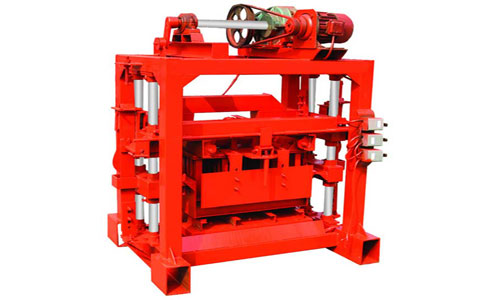

BR4-40
Product Image
Details
Features:
1. Semi-automatic, Reasonable structure
This machine is kind of semi-automatic type for small-scale capacity. It adopt four-lead channel steel which can make it more stable.
2. Easy operation and installation
This kind semi-automatic machine is very easy to operate and installation and also no need special foundation.
3. Heat and Carburization Treatment
All the molds we use heat and carburization treatment which can make the life of the mold double than common kind.
Specification：
|
Cycle time |
45-50s |
|
Pallet size |
850*450mm |
|
Vibration |
Table vibration |
|
Vibration frequency |
2800 - 4500r/min |
|
Host machine power |
9.7kw |
|
Overall dimension |
1350×1460×1800mm |
|
Gross Weight |
1500kg |
Capacity：
|
Product size(mm) |
Pcs/Cycle |
Pcs/Hour |
Picture |
|
390*190*190 |
4 |
250-300 |
 |
|
390*140*190 |
5 |
300-350 |
 |
|
240*115*60 |
26 |
2200-2500 |
 |
|
225*112.5*50 |
9 |
600-700 |
|
