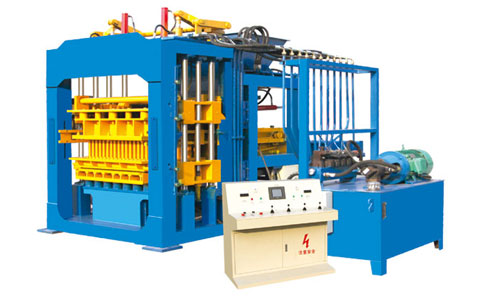

BR8-15

Product Image

Details

Features:

1. Frequency Converting Control Technology

All the motors we adopt frequency converting technology which can improve the life of the motor and save about 20% power.

2. Vibration System

Dynamic table and static vibrating table structure can ensure the amplitude of the vibration table and ensure the high quality of concrete products. Main vibration adopt low frequency standby, high frequency operation which improve the speed of operation and product quality.

3. Feeding System

Adopt two feeding shaft system which can guarantee the material feeder can running much smoothly and feeding material much equably.

4. Hydraulic System

Hydraulic pumps and hydraulic valves adopt international brands. And hydraulic pipe uses “Flange Connection”, convenient installation and maintenance.

5. Siemens Motor and PLC

Adopt Siemens making brand motor and PLC which can guarantee the quality of the machinery.

Specification:



Cycle time 15-20s
Pallet size 950*900mm
Rated pressure 21MPA
Vibration Table vibration
Vibration frequency 2800 - 4500r/min
Host machine power 42KW
Overall dimension 7000x2400x3020mm
Gross Weight 10T
Factory area 2000m2














Capacity:


Product size(mm) Pcs/Cycle Pcs/Hour Picture
390*190*190 8 1440 block
390*140*190 14 2520 block
200*100*60 27 3900 brick
225*112.5*50 20 2850 brick
