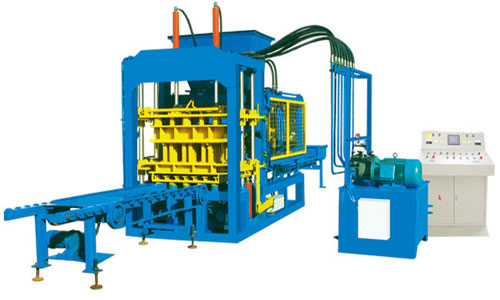

BR6-15
Product Image
Details
Features:
1. Frequency Converting Control Technology
All the motors we adopt frequency converting technology which can improve the life of the motor and save about 20% power.
2. Vibration System
Dynamic table and static vibrating table structure can ensure the amplitude of the vibration table and ensure the high quality of concrete products. Main vibration adopt low frequency standby, high frequency operation which improve the speed of operation and product quality.
3. Feeding System
Adopt two feeding shaft system which can guarantee the material feeder can running much smoothly and feeding material much equably.
4. Hydraulic System
Hydraulic pumps and hydraulic valves adopt international brands. And hydraulic pipe uses “Flange Connection”, convenient installation and maintenance.
5. Siemens Motor and PLC
Adopt Siemens making brand motor and PLC which can guarantee the quality of the machinery.
Specification：
|
Cycle time |
15-20s |
|
Pallet size |
850*680mm |
|
Rated pressure |
21MPA |
|
Vibration |
Table vibration |
|
Vibration frequency |
2800 - 4500r/min |
|
Host machine power |
37.5KW |
|
Overall dimension |
6800x2400x2820mm |
|
Gross Weight |
9T |
|
Factory area |
2000m2 |
Capacity：
|
Product size(mm) |
Pcs/Cycle |
Pcs/Hour |
Picture |
|
390*190*190 |
6 |
1080 |
 |
|
390*140*190 |
8 |
1440 |
 |
|
200*100*60 |
21 |
3780 |
 |
|
225*112.5*50 |
15 |
2700 |
 |
