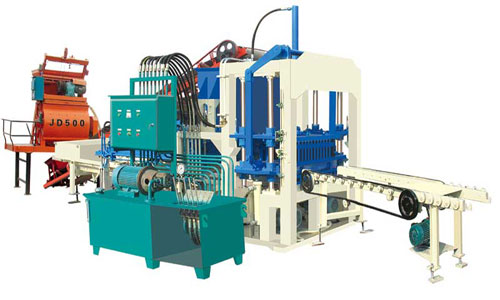

Product Image



1. Frequency Converting Control Technology

All the motors we adopt frequency converting technology which can improve the life of the motor and save about 20% power.

2. Vibration System

Dynamic table and static vibrating table structure can ensure the amplitude of the vibration table and ensure the high quality of concrete products. Main vibration adopt low frequency standby, high frequency operation which improve the speed of operation and product quality.

3. Feeding System

Adopt two feeding shaft system which can guarantee the material feeder can running much smoothly and feeding material much equably.

4. Hydraulic System

Hydraulic pumps and hydraulic valves adopt international brands. And hydraulic pipe uses “Flange Connection”, convenient installation and maintenance.

5. Heat and Carburization Treatment

All the molds we use heat and carburization treatment which can make the life of the mold double than common kind.


Cycle time 20-25s
Pallet size 1020*570mm
Rated pressure 16 MPA
Vibration Table vibration
Vibration frequency 2800 - 4500r/min
Host machine power 23KW
Overall dimension 6950x2000x2600mm
Gross Weight 4.5T
Factory area 1500m2


Product size(mm) Pcs/Cycle Pcs/Hour Picture
390*190*190 4 650-700 Block
390*140*190 5 800-900 Brick
200*100*60 16 2500-2600 Brick
225*112.5*50 14 2200-2300 Block
